The use of SPI has some advantages and cons. The slave will return the data to the master via MISO if a response is necessary. The slave receives data from the master through MOSI.Ĥ. To activate the slave, the master pushes down the SS / CS pin.ģ. SPI is a full-duplex communication protocol in theory.Ģ.
I2C VS UART PERFORMANCE SERIAL
The master sends data to the slave in a serial fashion via MOSI, while the slave can send data to the master via MISO, and the two can be done simultaneously. These slave devices can be connected in the following ways if the host only has one chip select pin available: On the host, there can be numerous CS/SS pins, allowing the host to converse with multiple slaves. The chip select line remains high in the idle/non-transmission condition.

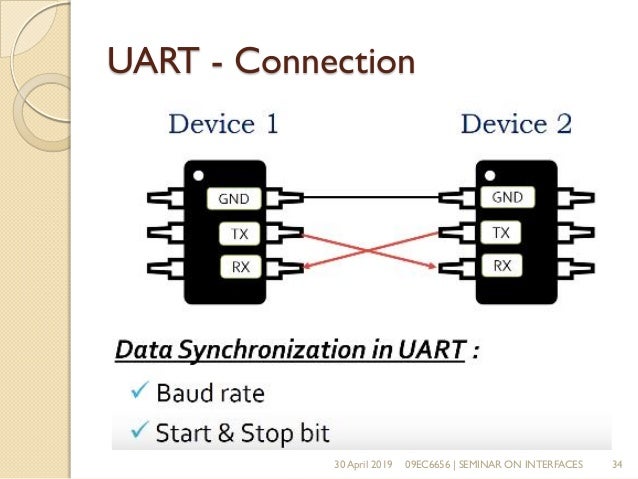

The slave's CS/SS is pulled down by the host, allowing communication. In UART communication, for example, both sides are set to a pre-configured baud rate, which sets the data transfer speed and timing. Some asynchronous communication does not utilize a clock signal, yet SPI is a synchronous communication mechanism. Synchronization refers to any communication technique in which devices share clock signals. The SPI communication is always begun by the host because the clock signal is generated by the host setup. In actuality, the number of slaves is restricted by the system's load capacitance, which limits the master's capacity to flip between voltage levels reliably.īecause each clock cycle transmits one bit of data, the data transmission speed is determined by the clock signal's frequency. Chip select signal SS/CS (Slave Select/Chip Select). Signal line, master input, slave output, MISO (Master Input/Slave Output). There are four signal lines in a set of SPI communication: Signal line, master output, slave input, MOSI (Master Output/Slave Input). The host (typically a microcontroller) is the control device, while the slave (commonly a sensor, display, or memory chip) receives instructions from the host. The SPI device is split into two parts: a host and a slave system. Data is transferred in the form of packets with a limited amount of bits in I2C and UART. It has the distinct advantage of being able to send and receive any number of bits continuously and without interruption. SPI is a widely used device communication protocol. The serial transmission of the letter "C" in binary (01000011) is shown in the diagram below: The parallel transmission of the character "C" in binary (01000011) is shown in the diagram below:īits are delivered one by one across a single wire in serial transmission. In parallel communication, data bits are sent over the cable at the same time. In a 5V system, "0" communicates through short 0V pulses, while "1" communicates through short 5V pulses.ĭata bits can be sent in a serial or parallel format. Bits are transmitted from one device to another when the voltage is rapidly changed. Bits are binary and can only be one of two values: 1 or 0.
This article compares and contrasts them.ĭata bits are used to communicate between electronic devices. I've written articles regarding SPI, UART, and I2C communication independently in the past. These languages are known as communication protocols in electronic products. Both parties must communicate in the same language. Communication between electrical equipment is similar to human communication.
